Name: UL20549 New Energy Motor UV Resistance Stranded Flexible Electric Control Cable Wire
Brand: Entreprise de commerce électronique Yiwu Alldone
SKU: UL20549 New Energy Motor UV Resistance Stranded Flexible Electric Control Cable Wire
Availability: InStock
Rating: 5 (1 reviews)

No.UL20549 New Energy Motor UV Resistance Stranded Flexible Electric Control Cable Wire

UL20549 New Energy Motor UV Resistance Stranded Flexible Electric Control Cable Wire

GET A QUOTE

Add to Quote List Parcourir la liste

Description

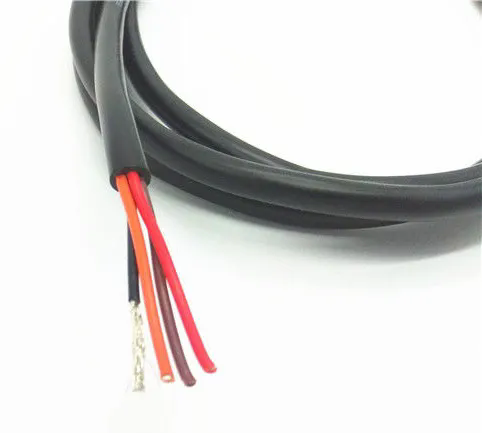

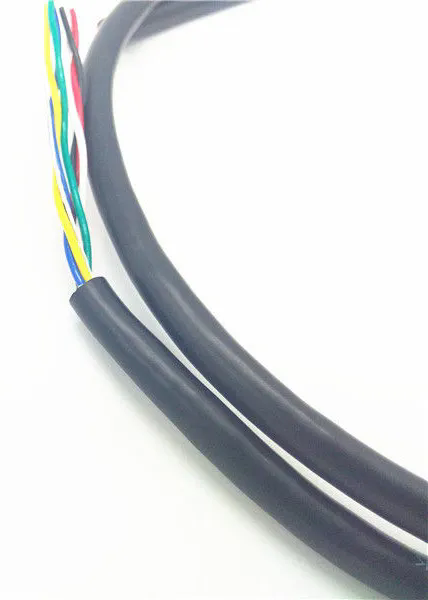

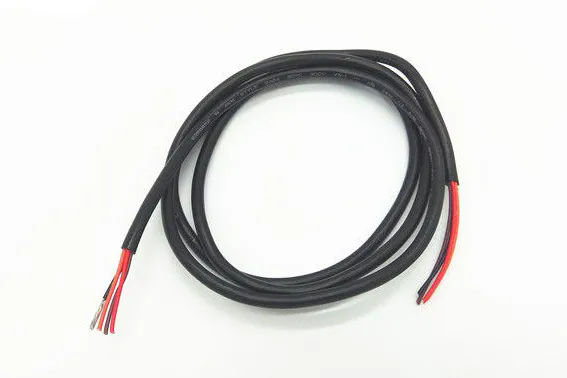

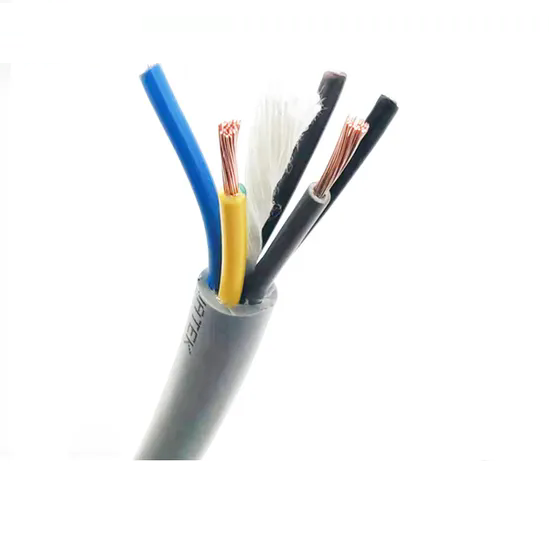

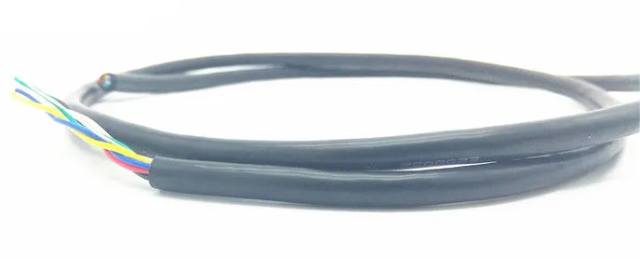

UL20549 New Energy Motor UV Resistance Stranded Flexible Electric Control Cable Wire

UL20549 New Energy Motor UV Resistance Stranded Flexible Electric Control Cable Wire - Your Ideal Wiring Solution

1. Product Construction

Conductor: Composed of stranded, tinned or bare copper, in compliance with IEC60228 CL5 standard. This construction ensures high flexibility and excellent electrical conductivity, making it suitable for applications where the cable needs to withstand bending and twisting.

Insulation: Made of PP (Polypropylene), which provides effective electrical insulation. PP insulation helps to prevent electrical leakage and interference, ensuring stable and reliable operation of the cable.

Jacket: The PUR (Polyurethane) jacket is a key feature of this cable. PUR is known for its outstanding properties such as oil resistance, wear resistance, and bending resistance. It offers superior protection to the inner components of the cable, extending its lifespan even in harsh environments.

2. Standards Compliance

International Standards: Complies with UL758, UL1581, and UL2556 standards. These international certifications are a testament to the cable's high quality, safety, and performance.

Environmental Compliance: Meets RoHS and REACH requirements, indicating that the cable is free from hazardous substances and is environmentally friendly. This makes it a responsible choice for both manufacturers and end - users.

3. Technical Data

Rated Voltage: With a rated voltage of 300V, it is suitable for a wide range of electrical applications, providing stable power transmission.

Rated Temperature: Can operate effectively at a rated temperature of 80ºC, making it suitable for use in environments with moderate to high temperatures.

Flame Resistance: Achieves FT2 flame rating, which means it has good flame - retardant properties. In case of a fire, the cable will not contribute significantly to the spread of flames, ensuring the safety of personnel and equipment.

Oil Resistance: Demonstrates excellent oil resistance, capable of withstanding exposure to oil at 60 ºC or 80 ºC. This makes it an ideal choice for applications in industries such as automotive, manufacturing, and robotics where oil - contaminated environments are common.

UV Resistance: Complies with UL1581 for UV resistance. The cable can be used outdoors without significant degradation due to sunlight exposure, ensuring long - term performance in outdoor applications.

Voltage Withstand Test: Passes the AC 2.0kV/1min voltage withstand test, ensuring its reliability and safety under normal and abnormal operating conditions.

Printing: Features clear printing with details such as E258652, AWM STYLE 20549, 80ºC 300V FT2, and XXX, which helps with product identification and compliance verification.

4. Product Properties

Heat Resistance: Maintains its integrity and performance even at high temperatures, ensuring continuous operation in heat - prone environments.

Oil Resistance: As mentioned, the PUR jacket provides exceptional resistance to oils, protecting the cable from damage and ensuring its proper functioning.

Wear Resistance: The cable is highly resistant to wear, making it suitable for applications where it may be subject to friction or mechanical stress.

Bending Resistance: Its flexible construction allows it to withstand repeated bending without breaking or losing its electrical properties, ideal for applications that require frequent movement of the cable.

UV Resistance: Protects against the harmful effects of ultraviolet rays, making it suitable for long - term outdoor use.

5. Product Specifications

Part No.	No. coresxcross - sec	AWG	Outer dia.	App.mm	Wheight App.	Kg/km
HT2001335	17Cx26AWG+W	26	7.00±0.35	-	66
HT2000699	8C×24AWG	24	5.30±0.20	-	45
HT2000693	5C×22AWG	22	5.30±0.20	-	46
