| Classification | Parameter Item | Specification Description |
|---|---|---|
| Basic Information | Certification Standard | UL758 AWM (Appliance Wiring Material) |

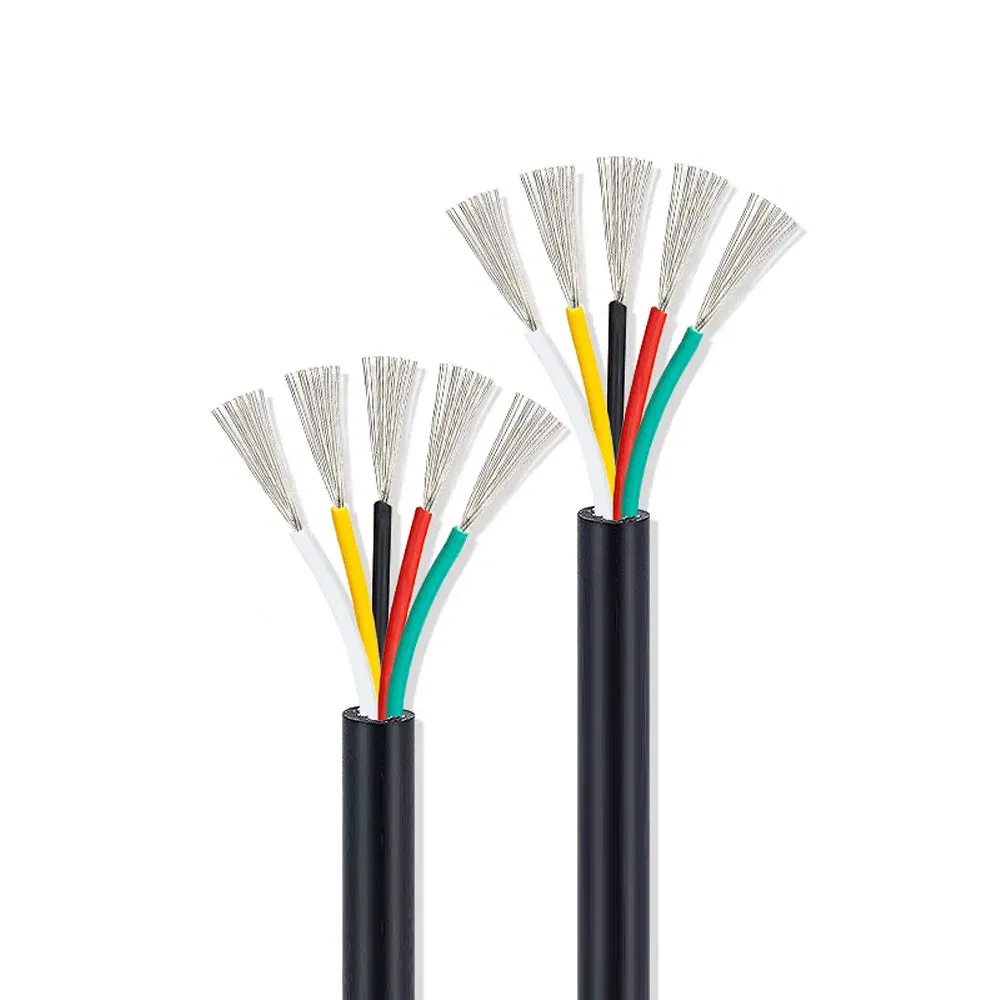

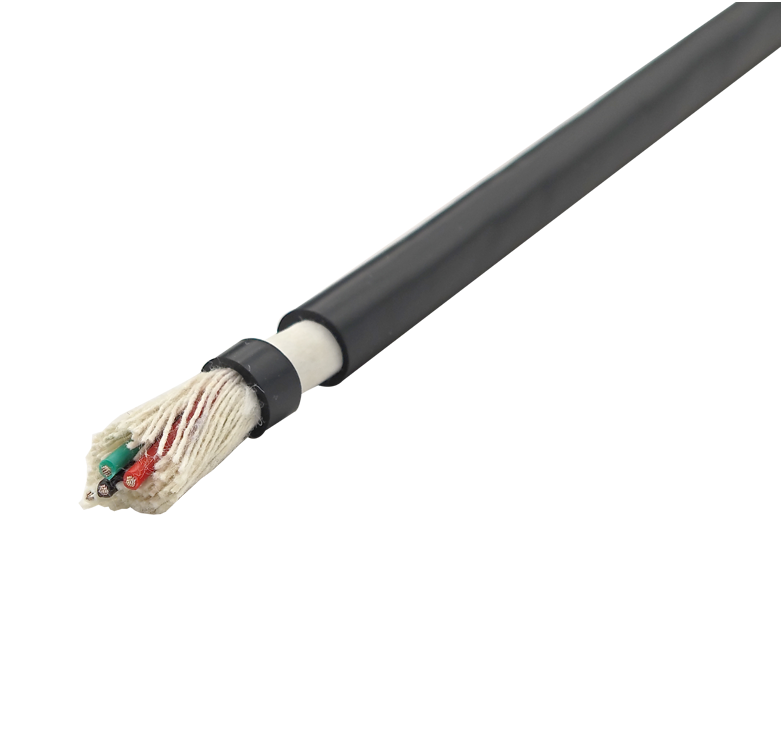

| Type Definition | Multi-Conductor Flexible Cable | |
| Structural Parameters | Conductor Material | Bare Copper Stranded, Class 5/6 Stranding |
| Standard Core Number | 2-core, 3-core, 4-core (common), customizable core number | |
| Insulation Material | PVC (standard type, 80°C) or Modified PVC (optional 105°C) | |
| Sheath Material | PVC outer covering (mainly black and gray), thickness ≥ 0.76mm (required by UL1581), customizable color | |
| Electrical Parameters | Rated Voltage | 300V AC/DC (60Hz) |
| Temperature Rating | Standard type: 80°C; High-temperature type: 105°C (need to be marked in the model) | |
| Insulation Resistance | ≥20 MΩ·km (at 20°C ambient temperature) | |
| Withstand Voltage Test | 2000V AC/1min (no breakdown between cores and between core and shielding layer) | |
| Conductor DC Resistance (20°C) | 26AWG ≤133.9 Ω/km; 24AWG ≤84.2 Ω/km (UL1581 Table 20.1) | |
| Mechanical Parameters | Minimum Bending Radius | Approximately 6×outer diameter (for fixed installation) or 10×outer diameter (for mobile applications) |
| Sheath Tensile Strength | ≥10.5 MPa (UL1581 §38) | |
| Dynamic Bending Life | ≥10,000 times (varying according to sheath flexibility) | |
| Environmental Parameters | Operating Temperature Range | Standard type: -20°C~+80°C; High-temperature type: -40°C~+105°C |
| Flame Retardant Rating | VW-1 (passes the UL1581 vertical combustion test, §1080) | |
| Environmental Protection Certification | Complies with RoHS | |
| Typical Application Scenarios | Electronic Equipment | Internal wiring harnesses of printers, power cords of POS machines, internal wiring of monitors |
| Industrial Control Systems | Low-current signal transmission in PLC control cabinets, sensor connections | |
| Consumer Products | UAV flight control wires, connections between intelligent home control boards |
| Serial Number | Cross-Section AWG | Outer Diameter (mm) | Copper Weight (KG/KM) | Cable Weight (KG/KM) | Color |
|---|---|---|---|---|---|
| 1 | 2X28AWG | 3.9 | 6.4 | 19 | Customizable |
| 2 | 3X28AWG | 4 | 7.5 | 22 | Customizable |
| 3 | 4X28AWG | 4.3 | 8.8 | 25 | Customizable |
| 4 | 5X28AWG | 4.5 | 10.1 | 28 | Customizable |
| 5 | 6X28AWG | 4.8 | 11.5 | 31 | Customizable |
| 6 | 7X28AWG | 4.8 | 12.3 | 32 | Customizable |
| 7 | 8X28AWG | 5.1 | 13.7 | 36 | Customizable |
| 8 | 10X28AWG | 5.9 | 16.7 | 45 | Customizable |
| 9 | 12X28AWG | 6 | 18.5 | 49 | Customizable |
| 10 | 14X28AWG | 6.3 | 20.5 | 54 | Customizable |
| 11 | 16X28AWG | 6.5 | 22.6 | 59 | Customizable |
| 12 | 18X28AWG | 6.8 | 24.7 | 63 | Customizable |
| 13 | 20X28AWG | 7.3 | 26.8 | 72 | Customizable |
| 14 | 25X28AWG | 7.9 | 34.9 | 87 | Customizable |
| 15 | 30X28AWG | 8.3 | 39.6 | 97 | Customizable |
| 16 | 32X28AWG | 8.5 | 41.8 | 102 | Customizable |
| 17 | 36X28AWG | 9 | 45.5 | 114 | Customizable |
| 18 | 37X28AWG | 9 | 46.3 | 116 | Customizable |
| 19 | 40X28AWG | 9.3 | 49.3 | 123 | Customizable |
| 20 | 50X28AWG | 10.5 | 59.5 | 151 | Customizable |
| 21 | 2X26AWG | 4.1 | 8 | 22 | Customizable |
| 22 | 3X26AWG | 4.3 | 9.7 | 25 | Customizable |
| 23 | 4X26AWG | 4.5 | 11.6 | 29 | Customizable |
| 24 | 5X26AWG | 4.8 | 13.6 | 33 | Customizable |
| 25 | 6X26AWG | 5.1 | 15.7 | 37 | Customizable |
| 26 | 7X26AWG | 5.1 | 16.9 | 39 | Customizable |
| 27 | 8X26AWG | 5.4 | 19 | 43 | Customizable |
| 28 | 10X26AWG | 6.3 | 23.3 | 55 | Customizable |
| 29 | 12X26AWG | 6.5 | 26.3 | 60 | Customizable |
| 30 | 14X26AWG | 6.7 | 29.5 | 66 | Customizable |
| 31 | 16X26AWG | 7 | 32.8 | 73 | Customizable |
| 32 | 18X26AWG | 7.3 | 38.8 | 82 | Customizable |
| 33 | 20X26AWG | 7.8 | 42.3 | 92 | Customizable |
| 34 | 25X26AWG | 8.5 | 50.8 | 108 | Customizable |
| 35 | 30X26AWG | 8.9 | 58.5 | 123 | Customizable |
| 36 | 32X26AWG | 9.4 | 61.9 | 133 | Customizable |
| 37 | 36X26AWG | 9.9 | 67.9 | 149 | Customizable |
| 38 | 37X26AWG | 9.9 | 69.2 | 151 | Customizable |
| 39 | 40X26AWG | 10.2 | 74 | 161 | Customizable |
| 40 | 50X26AWG | 11.5 | 90.2 | 197 | Customizable |
| 41 | 2X24AWG | 4.3 | 10 | 25 | Customizable |
| 42 | 3X24AWG | 4.5 | 12.4 | 29 | Customizable |
| 43 | 4X24AWG | 4.8 | 15.2 | 34 | Customizable |
| 44 | 5X24AWG | 5.1 | 18 | 39 | Customizable |
| 45 | 6X24AWG | 5.4 | 20.8 | 44 | Customizable |
| 46 | 7X24AWG | 5.4 | 22.9 | 47 | Customizable |
| 47 | 8X24AWG | 5.9 | 25.7 | 55 | Customizable |
| 48 | 10X24AWG | 6.7 | 31.7 | 66 | Customizable |
| 49 | 12X24AWG | 6.9 | 36.1 | 73 | Customizable |
| 50 | 14X24AWG | 7.4 | 40.9 | 85 | Customizable |
| 51 | 16X24AWG | 7.7 | 48.5 | 96 | Customizable |
| 52 | 18X24AWG | 8.2 | 53.5 | 108 | Customizable |
| 53 | 20X24AWG | 8.5 | 58.6 | 117 | Customizable |
| 54 | 25X24AWG | 9.3 | 71 | 139 | Customizable |
| 55 | 30X24AWG | 10 | 82.5 | 162 | Customizable |
| 56 | 32X24AWG | 10.3 | 87.5 | 171 | Customizable |
| 57 | 36X24AWG | 10.8 | 96.6 | 191 | Customizable |
| 58 | 37X24AWG | 10.8 | 98.6 | 194 | Customizable |
| 59 | 40X24AWG | 11.1 | 105.7 | 206 | Customizable |
| 60 | 50X24AWG | 12.6 | 129.6 | 254 | Customizable |
| 61 | 2X22AWG | 4.7 | 13.2 | 30 | Customizable |
| 62 | 3X22AWG | 4.9 | 16.8 | 36 | Customizable |
| 63 | 4X22AWG | 5.2 | 20.8 | 43 | Customizable |
| 64 | 5X22AWG | 5.6 | 24.8 | 50 | Customizable |
| 65 | 6X22AWG | 6.2 | 28.9 | 59 | Customizable |
| 66 | 7X22AWG | 6.2 | 32.1 | 64 | Customizable |
| 67 | 8X22AWG | 6.6 | 36.2 | 71 | Customizable |
| 68 | 10X22AWG | 7.7 | 47.5 | 92 | Customizable |
| 69 | 12X22AWG | 7.9 | 54.3 | 103 | Customizable |
| 70 | 14X22AWG | 8.2 | 61.6 | 115 | Customizable |
| 71 | 16X22AWG | 8.8 | 69 | 130 | Customizable |
| 72 | 18X22AWG | 9.2 | 76.4 | 143 | Customizable |
| 73 | 20X22AWG | 9.8 | 83.9 | 159 | Customizable |
| 74 | 25X22AWG | 10.7 | 102.2 | 190 | Customizable |
| 75 | 30X22AWG | 11.4 | 119.5 | 222 | Customizable |
| 76 | 36X22AWG | 12.4 | 140.5 | 262 | Customizable |
| 77 | 37X22AWG | 12.4 | 143.7 | 267 | Customizable |
| 78 | 40X22AWG | 13 | 154.2 | 290 | Customizable |
| 79 | 2X20AWG | 5.3 | 18 | 39 | Customizable |
| 80 | 3X20AWG | 5.5 | 23.4 | 47 | Customizable |
| 81 | 4X20AWG | 6 | 29.2 | 57 | Customizable |
| 82 | 5X20AWG | 6.6 | 35.1 | 69 | Customizable |
| 83 | 6X20AWG | 7.1 | 41.1 | 79 | Customizable |
| 84 | 7X20AWG | 7.1 | 45.9 | 86 | Customizable |
| 85 | 8X20AWG | 7.8 | 54.7 | 103 | Customizable |
| 86 | 10X20AWG | 9.1 | 67.6 | 129 | Customizable |
| 87 | 12X20AWG | 9.3 | 78 | 145 | Customizable |
| 88 | 14X20AWG | 9.8 | 88.8 | 162 | Customizable |
| 89 | 16X20AWG | 10.4 | 99.7 | 185 | Customizable |
| 90 | 18X20AWG | 11.1 | 110.7 | 208 | Customizable |
| 91 | 20X20AWG | 11.8 | 121.8 | 231 | Customizable |
| 92 | 25X20AWG | 12.9 | 149 | 276 | Customizable |
| 93 | 30X20AWG | 13.6 | 174.9 | 317 | Customizable |
| 94 | 37X20AWG | 14.7 | 211.3 | 381 | Customizable |
| 95 | 40X20AWG | 15.4 | 227.1 | 414 | Customizable |
| 96 | 2X18AWG | 5.7 | 24.5 | 47 | Customizable |
| 97 | 3X18AWG | 6 | 32.8 | 59 | Customizable |
| 98 | 4X18AWG | 6.4 | 41.5 | 72 | Customizable |
| 99 | 5X18AWG | 7.2 | 50.3 | 88 | Customizable |
| 100 | 6X18AWG | 7.9 | 62.1 | 108 | Customizable |
| 101 | 7X18AWG | 7.9 | 69.6 | 119 | Customizable |
| 102 | 8X18AWG | 8.6 | 78.8 | 137 | Customizable |
